Source Code
<div class="scene">
<p class="eyebrow">Scroll-triggered</p>
<h1 class="flip-heading" data-flip-text="Design in motion"></h1>
<p class="hint">Scroll down, then back up to replay</p>
<div class="spacer"></div>
<h2 class="flip-heading small" data-flip-text="Every letter flips into place"></h2>
<div class="spacer"></div>
</div>* { box-sizing: border-box; margin: 0; padding: 0; }
body { font-family: system-ui, sans-serif; background: #0b0f1a; color: #e2e8f0; }
.scene { display: flex; flex-direction: column; align-items: center; padding: 80px 20px; text-align: center; }
.eyebrow { font-size: 12px; font-weight: 700; letter-spacing: 2px; text-transform: uppercase; color: #6366f1; margin-bottom: 14px; }
.hint { font-size: 12px; color: #475569; margin-top: 10px; }
.spacer { height: 60vh; }
.flip-heading {
font-size: clamp(28px, 6vw, 52px);
font-weight: 800;
letter-spacing: -0.01em;
perspective: 800px;
display: flex;
flex-wrap: wrap;
justify-content: center;
max-width: 780px;
}
.flip-heading.small { font-size: clamp(20px, 4vw, 32px); color: #94a3b8; max-width: 640px; }
.char {
display: inline-block;
transform-style: preserve-3d;
transform-origin: 50% 50% -0.5em;
transform: rotateX(-100deg);
opacity: 0;
color: #f8fafc;
transition: transform 0.6s cubic-bezier(0.2, 0.8, 0.2, 1), opacity 0.4s ease;
}
.flip-heading.small .char { color: #a5b4fc; }
.char.visible { transform: rotateX(0deg); opacity: 1; }
.char.space { width: 0.3em; }function buildChars(el) {
const text = el.dataset.flipText || el.textContent;
el.textContent = '';
const frag = document.createDocumentFragment();
text.split('').forEach((ch, i) => {
const span = document.createElement('span');
span.className = 'char' + (ch === ' ' ? ' space' : '');
span.textContent = ch === ' ' ? '\u00a0' : ch;
span.style.transitionDelay = (i * 28) + 'ms';
frag.appendChild(span);
});
el.appendChild(frag);
}
document.querySelectorAll('.flip-heading').forEach(buildChars);
const observer = new IntersectionObserver((entries) => {
entries.forEach((entry) => {
const chars = entry.target.querySelectorAll('.char');
if (entry.isIntersecting) {
chars.forEach((c) => c.classList.add('visible'));
} else {
chars.forEach((c) => c.classList.remove('visible'));
}
});
}, { threshold: 0.4 });
document.querySelectorAll('.flip-heading').forEach((el) => observer.observe(el));Learn Coding Visually
Learn to code with interactive, live-preview playgrounds — HTML, CSS, JavaScript, React & more.
HTML Playground42 lessons · Click-based · Live preview
CSS PlaygroundLearn CSS with a live editor
JavaScript Playground60 lessons · DOM · Async · Canvas
React PlaygroundLearn React with a live code editor
GSAP PlaygroundLearn GSAP animation interactively
SVG Playground44 lessons · shapes · paths · animation
SCSS Playground45 lessons · Sass modules · tokens
Tailwind PlaygroundLearn Tailwind CSS with a live editor
Bootstrap 5 Playground50 lessons · live preview3D Character Flip Reveal — Text Stagger CSS JS
3D Character Flip Reveal · Animations · Plain HTML, CSS & JS · Live preview
What's included
Features
About this UI Snippet

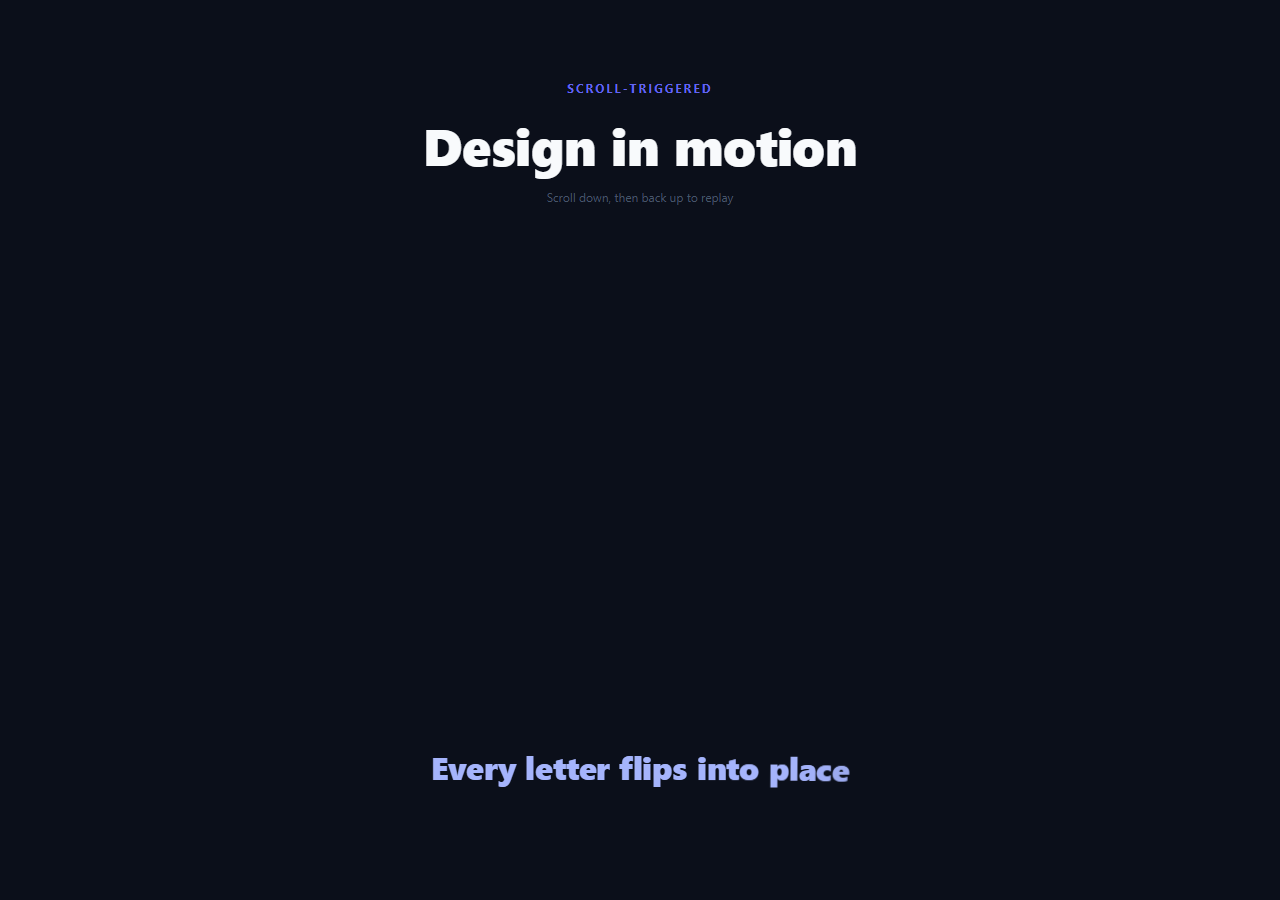

3D Character Flip Reveal — rotateX Stagger, perspective & IntersectionObserver
A 3D character flip reveal splits a heading into individual letters and flips each one up from a rotated, invisible state into full view, staggered so the reveal sweeps left to right like a wall of tiny split-flap tiles. It reads as more physical and dimensional than a plain fade or slide, which is why it shows up on portfolio hero sections and product landing pages that want a heading entrance with weight to it. For a flatter left-to-right stagger without the 3D rotation, see split text or scroll letter stagger; for the mechanical digit-rolling version of a flip display, see split-flap display.
Splitting the text into characters
buildChars(el) reads the heading's text from a data-flip-text attribute, clears the element, then wraps every character in its own <span class="char">. Spaces become non-breaking spaces (\u00a0) inside a .space span so word gaps survive the display: inline-block layout the flip animation needs. Doing the split once on page load — rather than hand-authoring dozens of spans in the HTML — keeps the source markup readable and lets you swap the headline by editing one attribute.
The 3D flip with perspective and transform-origin
The parent .flip-heading gets perspective: 800px, which gives child 3D transforms a vanishing point to rotate against. Each .char starts at transform: rotateX(-100deg) with opacity: 0 — tipped backward and invisible, as if lying flat behind the baseline. transform-origin: 50% 50% -0.5em pushes the rotation axis slightly behind the letter's own plane so the flip reads as a genuine 3D hinge rather than a flat squash. Adding the .visible class sets transform: rotateX(0deg) and opacity: 1, and the cubic-bezier(0.2, 0.8, 0.2, 1) easing gives the settle a slight overshoot-free snap.
Staggering with transition-delay instead of animation-delay
Because this reveal uses a plain CSS transition (triggered by toggling a class) rather than a @keyframes animation, the stagger is set via span.style.transitionDelay = (i * 28) + 'ms' in JavaScript at build time — each character's delay is proportional to its index. This is simpler to reason about than generating 50+ numbered nth-child delay rules in CSS, and it scales automatically to headlines of any length.
Re-triggering with IntersectionObserver
An IntersectionObserver watches each .flip-heading at threshold: 0.4. When a heading enters the viewport, .visible is added to every .char inside it, firing the staggered flip. When it exits, .visible is removed, resetting the characters to their hidden rotated state — so scrolling back up and down replays the reveal instead of firing only once. Delete the else branch if you want a fire-once entrance instead of a repeatable one.
Build with AI
Build, Understand, Optimize, and Extend It With AI
Paste this snippet's HTML, CSS, and JS into an AI coding assistant like Claude and ask it to walk through exactly how perspective on the parent and transform-origin with a negative z-offset on each child combine to make rotateX() read as a physical hinge instead of a flat squash — try changing the perspective value together and watching how the depth of the flip changes. It is also worth a performance conversation: since every character gets its own transition and IntersectionObserver toggles all of them on every scroll crossing, ask whether will-change: transform on .char would help on a very long headline, or whether that many transitioning elements is fine as-is. For extending it, ask for a version that flips in words instead of characters for a calmer effect, one where the flip direction alternates between rotateX and rotateY per character, or one that only fires once using a per-element "already played" flag instead of resetting on scroll-out. Treat the code less like a finished artifact and more like a starting point for a conversation.
Prompt to recreate it
Copy this into your AI assistant of choice to build the effect from scratch, or as a jumping-off point for your own variant:
Build a scroll-triggered 3D character flip-in reveal for a heading in plain HTML, CSS, and vanilla JavaScript — no animation library.
Requirements:
- Take a heading's text from a data attribute and, on page load, replace its content with one <span> per character (preserving word spaces as non-breaking spaces inside their own span so inline-block layout does not collapse them).
- Give the heading's container a CSS perspective so child 3D transforms have a vanishing point, and give each character span a transform-origin pulled slightly behind its own plane (a negative z offset) so the flip reads as a real hinge rather than a flat rotation.
- Each character span must start rotated backward around the X axis and fully transparent, then transition to rotateX(0deg) and full opacity when a "visible" class is added, using an eased cubic-bezier transition rather than a linear one.
- Stagger the reveal by setting each character's CSS transition-delay in JavaScript proportional to its index in the string, so the flip sweeps left to right across the headline instead of firing all at once.
- Use an IntersectionObserver to add the "visible" class to all characters in a heading when it scrolls into view, and remove the class when it scrolls back out, so scrolling past the heading repeatedly replays the flip-in animation each time.
- Support multiple independent headings on the same page, each with its own text and its own observer-driven reveal, using one reusable class name rather than duplicated code per heading.Want to tighten it up first? Run this prompt through the AI Prompt Studio to score it across 8 quality dimensions, catch anti-patterns, and tune the wording for Claude, ChatGPT, or Gemini before you paste it in.
Step by step
How to Use
- 1Scroll the previewScroll the heading out of view and back in — the IntersectionObserver toggles .visible each time, replaying the flip.
- 2Change the headline textEdit the data-flip-text attribute on .flip-heading in the HTML panel. The JS rebuilds character spans from that attribute automatically.
- 3Adjust the stagger speedIn the JS panel, change the 28 multiplier in span.style.transitionDelay = (i * 28) — smaller values reveal faster.
- 4Tune the flip depthIn the CSS panel, change perspective: 800px on .flip-heading (lower = more dramatic) and the -0.5em z-offset in transform-origin.
- 5Fire only onceIn the JS panel, remove the else branch inside the IntersectionObserver callback so characters stay visible after their first reveal.
- 6Export in your formatClick "HTML" for a standalone file, "JSX" for a React component, or "Tailwind" for a React + Tailwind version.
Real-world uses
Common Use Cases
Got questions?
Frequently Asked Questions
perspective: 800px on the parent element gives child rotateX() transforms a vanishing point, so the character genuinely appears to hinge in 3D space toward and away from the viewer, rather than just scaling flat. transform-origin with a negative z value (-0.5em) offsets the rotation axis behind the glyph for a more convincing hinge.
A headline can be any length, and hand-writing nth-child(1) through nth-child(40) delay rules does not scale. Setting span.style.transitionDelay = (i * 28) + "ms" at build time computes the correct delay for exactly as many characters as the text contains.
The IntersectionObserver callback adds .visible on isIntersecting and removes it otherwise. Removing the else branch (or checking a "played" flag before removing) makes the reveal fire once and stay revealed.
Give each heading its own data-flip-text attribute and the same flip-heading class. buildChars() and the observer both use querySelectorAll and run identically for every matching element.
Yes — a plain space character inside display: inline-block spans can collapse. The script replaces spaces with a non-breaking space (\u00a0) inside a .space span so word gaps render consistently.
Yes. Click "JSX" for a React component. Split the string with String.prototype.split("") in a useMemo, render a span per character with an inline transitionDelay style, and use a useRef plus IntersectionObserver in a useEffect to toggle a "visible" state.
