Source Code

<section class="vwi-hero">
  <div class="vwi-copy">
    <span class="vwi-eyebrow">Speak, and it's done</span>
    <h1 class="vwi-h1">Your voice is<br>now your interface</h1>
    <p class="vwi-sub">Tap the mic and talk — watch live audio levels and a real-time transcript appear, just like it works inside the app.</p>
  </div>

  <div class="vwi-demo">
    <div class="vwi-bars" id="vwiBars"></div>

    <button type="button" class="vwi-mic" id="vwiMic" aria-pressed="false" aria-label="Start voice demo">
      <svg width="26" height="26" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2" stroke-linecap="round" stroke-linejoin="round">
        <path d="M12 1a3 3 0 0 0-3 3v8a3 3 0 0 0 6 0V4a3 3 0 0 0-3-3z"/>
        <path d="M19 10v2a7 7 0 0 1-14 0v-2"/>
        <line x1="12" y1="19" x2="12" y2="23"/>
        <line x1="8" y1="23" x2="16" y2="23"/>
      </svg>
    </button>

    <p class="vwi-status" id="vwiStatus">Tap to start listening</p>
    <p class="vwi-transcript" id="vwiTranscript">&nbsp;</p>
  </div>
</section>

Learn Coding Visually

Learn to code with interactive, live-preview playgrounds — HTML, CSS, JavaScript, React & more.

See all ->
HTML Playground42 lessons · Click-based · Live previewCSS PlaygroundLearn CSS with a live editorJavaScript Playground60 lessons · DOM · Async · CanvasReact PlaygroundLearn React with a live code editorGSAP PlaygroundLearn GSAP animation interactivelySVG Playground44 lessons · shapes · paths · animationSCSS Playground45 lessons · Sass modules · tokensTailwind PlaygroundLearn Tailwind CSS with a live editorBootstrap 5 Playground50 lessons · live preview

Hero with Voice Input Waveform Demo — Free HTML CSS JS Snippet

Hero with Voice Input Waveform Demo · Heroes · Plain HTML, CSS & JS · Live preview

TagsSVGCSS AnimationLanding PageForms & Validation

What's included

Features

Randomized waveform biased toward the center bars for a realistic amplitude envelope
Character-by-character transcript typing with randomized per-character delay
Believable listen -> process -> next-phrase loop cycling through multiple demo phrases
Clean start/stop toggle that fully clears intervals and timeouts on either transition
No microphone permission prompt required — works for every visitor instantly
Real <button> with aria-pressed and a dynamically updating aria-label
Blinking cursor rendered as a live span appended after the revealed transcript text
Clear comments on how to swap in the real Web Audio and Web Speech APIs
Export as HTML file, React JSX, or React + Tailwind CSS
Mobile (375px), Tablet (768px), Desktop device preview buttons

About this UI Snippet

Voice Input Hero with Live Waveform and Transcript — No Microphone Permission Needed

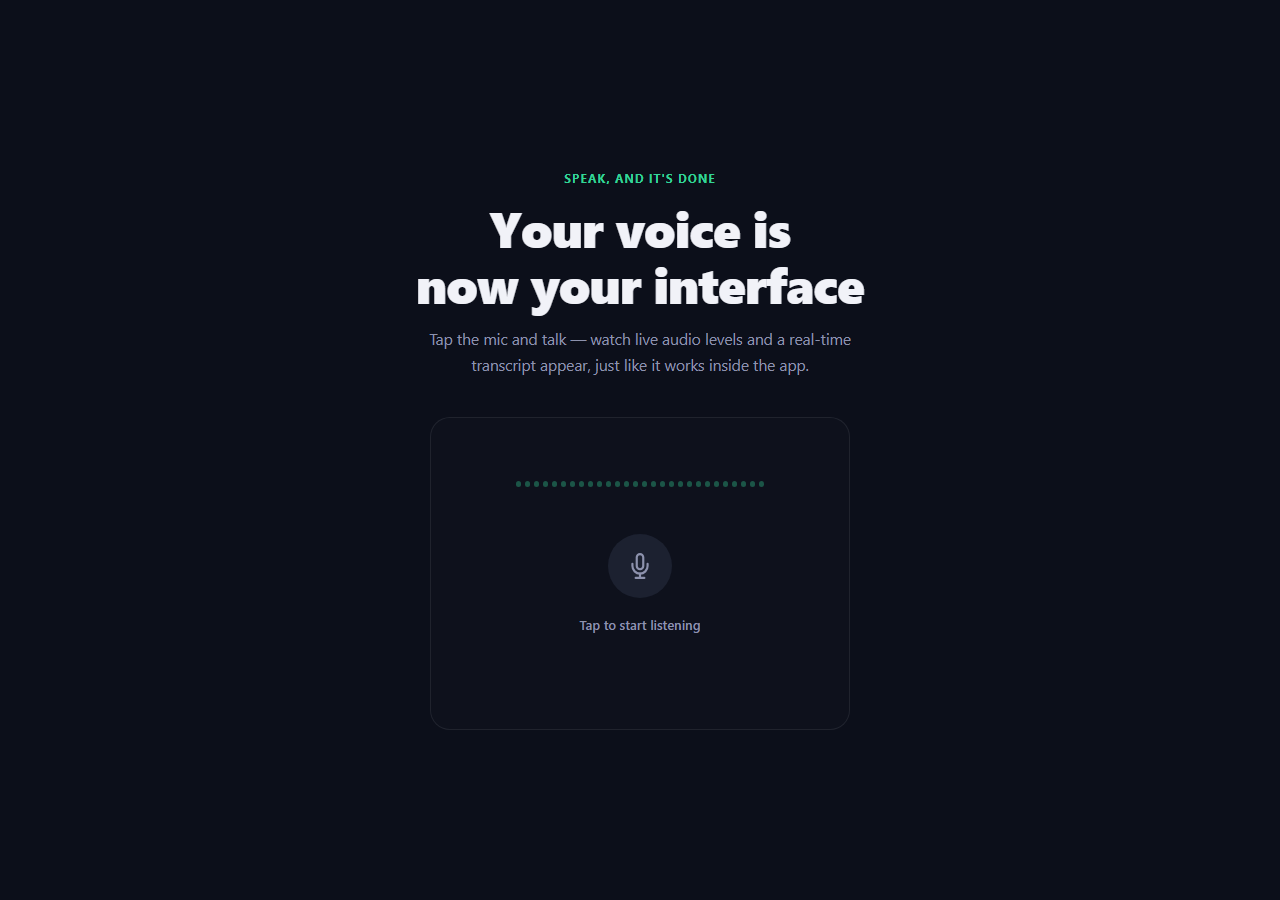

Screenshot of the Hero with Voice Input Waveform Demo snippet rendered live

Voice-first products (dictation tools, voice assistants, meeting transcription) need their hero section to *feel* like listening is happening — but requesting real microphone access on page load is a non-starter: it triggers a permission prompt before a visitor has decided whether they trust the site, and it does nothing for anyone previewing the page without a mic. This snippet fakes it convincingly instead — a randomized waveform loop plus a character-typed transcript — so the demo works instantly for every visitor with zero permissions.

Why the waveform isn't just uniform random noise

randomWaveform() computes a centerBias for each bar based on its distance from the middle of the row: 1 - abs(idx - BAR_COUNT/2) / (BAR_COUNT/2). Bars near the center get a bias close to 1, bars at the edges get a bias close to 0, and each bar's random height is scaled by 0.35 + centerBias * 0.65 — meaning even edge bars still move a little, but center bars have a much higher ceiling. Real audio-level meters tend to show a rough bell-curve envelope rather than perfectly flat random bars, and this cheap bias term is what makes the fake waveform read as "audio" rather than as generic random noise.

A real typed-out transcript, not a pre-baked GIF

typeTranscript() uses the same tag-free character-by-character setTimeout pattern common to typewriter effects: it slices the target phrase to an increasing charIndex on every step, with a randomized 26–61ms delay per character so the pace doesn't feel mechanically uniform. A blinking <span class="vwi-cursor"> is appended after the revealed text on every render, so it always sits immediately after the last typed character.

A believable listen → transcribe → next-phrase loop

Once a phrase finishes typing, the status label switches to "Got it — processed," pauses briefly, then advances phraseIndex (wrapping via modulo) and types the next phrase — cycling through a small array of realistic voice-command examples for as long as the mic stays toggled on. This models a real multi-utterance listening session rather than a single one-shot animation.

Toggle state fully cleans up on stop

stopListening() clears both the waveform setInterval and any in-flight typing setTimeout, resets every bar to its idle height, and blanks the transcript — so re-tapping the mic always starts from a clean, consistent state rather than an animation continuing to run invisibly in the background or two overlapping typing loops fighting over the same transcript element.

Accessible toggle semantics

The mic button is a real <button> with aria-pressed toggling between "false"/"true" and an aria-label that updates to describe the *next* action ("Start voice demo" vs. "Stop voice demo"), so assistive technology announces both the current state and what activating the control will do next.

Wiring it to a real microphone

To make this a genuine voice input instead of a demo, replace startListening()'s waveform interval with the Web Audio API's AnalyserNode reading live getFloatFrequencyData, and swap the scripted phrases array for the Web Speech API's SpeechRecognition interim/final results — both are drop-in replacements for the fake data sources this snippet demonstrates the animation and UI feedback loop with.

Build with AI

Build, Understand, Optimize, and Extend It With AI

Instead of guessing why the waveform bars near the center jump higher than the ones at the edges, paste this snippet's HTML, CSS, and JS into an AI coding assistant like Claude and ask it to explain exactly how centerBias shapes the random heights into something that reads as an audio-level meter rather than uniform noise, and how the type -> pause -> next-phrase loop keeps its own timers cleanly separated from the waveform's setInterval so stopping and restarting the demo never leaves a stray animation running. The same assistant is genuinely useful for turning this into a real feature: ask it to wire startListening() up to the actual Web Speech API's SpeechRecognition interface for real transcription, or to the Web Audio API's AnalyserNode for a waveform driven by a real microphone's frequency data, gated behind an explicit user gesture so the permission prompt only appears after the visitor taps the mic themselves. It can also help you handle the edge cases a production voice feature needs — what to show if getUserMedia is denied, how to detect silence and auto-stop listening, or how to debounce rapid mic taps. Treat the code less like a finished artifact and more like a starting point for a conversation.

Prompt to recreate it

Copy this into your AI assistant of choice to build the effect from scratch, or as a jumping-off point for your own variant:

text
Build a hero section in plain HTML, CSS, and vanilla JavaScript featuring a simulated voice-input demo — no microphone access, no Web Speech API, no library — just a convincing fake using timers.

Requirements:
- A hero headline and subheading above a demo panel containing: a row of vertical bars representing an audio waveform, a circular mic toggle button, a status text label, and a transcript text area.
- Clicking the mic button must toggle a "listening" state. While listening, animate the waveform bars with randomized heights on a fast interval, but bias the randomization so bars near the horizontal center of the row can reach noticeably taller heights than bars near the edges, so it reads as a rough audio-level envelope rather than flat uniform noise.
- While listening, also type out a realistic example voice-command phrase into the transcript area character by character using a recursive setTimeout chain with a small randomized per-character delay (not a fixed interval), with a separate blinking cursor element that always appears immediately after the last revealed character.
- After a phrase finishes typing, briefly show a "processed" status message, then automatically move on to the next phrase in a small array (looping back to the first after the last) and keep listening — a real multi-phrase cycle, not a single one-shot animation.
- Tapping the mic again while listening must fully stop everything: clear any running interval and any in-progress typing timeout, reset the waveform bars to their idle resting height, clear the transcript text, and reset the status label — so toggling the mic on and off repeatedly never leaves two overlapping animations running at once.
- The mic button must be a real <button> element with an aria-pressed attribute reflecting its state and an aria-label that updates to describe what activating it will do next.

Want to tighten it up first? Run this prompt through the AI Prompt Studio to score it across 8 quality dimensions, catch anti-patterns, and tune the wording for Claude, ChatGPT, or Gemini before you paste it in.

Step by step

How to Use

  1. 1
    Tap the mic buttonThe waveform bars start animating and the status label switches to "Listening…".
  2. 2
    Watch the transcript type itselfA realistic voice-command phrase types out character by character with a blinking cursor.
  3. 3
    See it cycleAfter a short pause, the demo automatically moves on to the next phrase and keeps listening.
  4. 4
    Tap the mic again to stopThe waveform, status, and transcript all reset cleanly to their idle state.
  5. 5
    Swap in your own phrasesEdit the phrases array in the JS panel with commands relevant to your product.
  6. 6
    Export in your formatClick "HTML" for a standalone file, "JSX" for a React component, or "Tailwind" for a React + Tailwind version.

Real-world uses

Common Use Cases

Voice assistant and dictation product pages
Show the listening experience immediately without requiring a microphone permission grant first.
Meeting transcription and note-taking tools
Demonstrate the live transcript feel with realistic command-style phrases relevant to your product.
Learn believable fake-data animation techniques
Study how centerBias shapes random bar heights into something that reads as audio rather than noise.
Accessibility and voice-control feature pages
Pair with real Web Speech API integration once a visitor explicitly opts in via the same mic button.
Smart speaker and IoT companion app marketing
Reuse the waveform-and-transcript pattern for any hands-free product story.
Related: Audio Waveform Visualizer
See the Audio Waveform Visualizer for a version driven by real audio input rather than a scripted demo.

Got questions?

Frequently Asked Questions

No. It deliberately avoids requesting real microphone access, since that would trigger a browser permission prompt before a visitor has any context for why the page wants it. The waveform and transcript are both simulated with setInterval/setTimeout so the demo works instantly and identically for every visitor.

Each bar's random height is scaled by a centerBias value based on its distance from the middle of the row — center bars can reach a much higher ceiling than edge bars. This mimics the rough bell-curve shape real audio-level meters tend to show, rather than looking like flat, uniform random noise.

typeTranscript() increments a charIndex on a recursive setTimeout chain, slicing the target phrase up to that index on each step and appending a blinking cursor span after it. Each character's delay is randomized within a small range so the typing rhythm feels more natural than a fixed-speed animation.

stopListening() clears both the waveform setInterval and any in-progress typing setTimeout, resets every bar to its idle height, and blanks the transcript text. This guarantees no animation keeps running invisibly in the background and prevents two overlapping typing loops from fighting over the same transcript element if you rapidly tap the mic on and off.

Replace the scripted phrases array and typeTranscript() calls with the Web Speech API's SpeechRecognition interface, feeding its interim and final results into the same transcript element. For the waveform, swap the setInterval-driven randomWaveform() for a Web Audio API AnalyserNode reading live getFloatFrequencyData from an actual microphone MediaStream — both are close to drop-in replacements for the fake data sources used here.

Yes. It is a real <button> element (not a styled div) with aria-pressed toggling between "false" and "true", and its aria-label updates dynamically between "Start voice demo" and "Stop voice demo" so assistive technology announces both the current state and the effect of activating it next.
