Pathfinding Grid Visualizer — Free HTML CSS JS Snippet

Pathfinding Grid Visualizer · Animations · Plain HTML, CSS & JS · Live preview

TagsCSS AnimationCSS Grid

What's included

Features

BFS implemented with a FIFO array queue — guarantees the first path found is shortest by unweighted edge count
A* implemented with an f = g + h priority list and an admissible Manhattan-distance heuristic
Search steps pre-computed into a flat array before animation, identical architecture to the sorting visualizer
Draggable start and end markers with collision protection against walls and each other
Click-and-drag wall drawing using a single mousedown/mouseover/mouseup handler trio, not per-cell listeners
Path reconstruction via a cameFrom map, the standard technique for backtracking a shortest route
Separate slower animation pass highlights the final shortest path in amber after the search completes
Clear Walls and New Grid controls reset different amounts of state for fast iteration

About this UI Snippet

Pathfinding Grid Visualizer — Animated BFS & A* Maze Search with Draggable Start/End and Wall Drawing in Vanilla JS

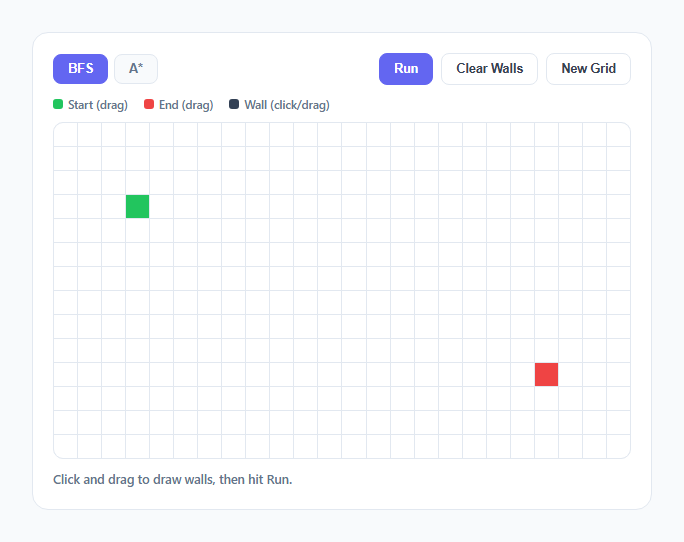

Screenshot of the Pathfinding Grid Visualizer snippet rendered live

Pathfinding visualizers are one of the clearest ways to make graph search algorithms tangible, because the "graph" is just a grid you can see and the "edges" are simply up/down/left/right neighbor cells. This snippet implements two classic algorithms — Breadth-First Search and A* with a Manhattan-distance heuristic — over a 24×14 grid where the user draws walls, drags the start and end markers, and watches the search expand cell by cell before the shortest path traces itself back.

Step pre-computation, same pattern as the sorting visualizer

Just like the sorting algorithm visualizer in this library, the search itself and its animation are fully decoupled. buildSearchSteps() runs BFS or A* to completion synchronously, producing a flat array of {type:'visit', r, c} and {type:'frontier', r, c} records plus the reconstructed shortest path array — none of that computation touches the DOM. Only afterward does run() walk the step array with a setTimeout loop, coloring one cell every 12 milliseconds. This means the search algorithm's correctness is never entangled with animation timing, and the exact same expansion order the algorithm computed is guaranteed to be what gets drawn, frame for frame.

BFS: queue mechanics and why cells "ripple" outward

BFS is implemented with a plain array used as a FIFO queue: queue.shift() removes the oldest-enqueued cell and queue.push() adds newly discovered neighbors to the back. Because cells are always processed in the order they were first discovered, and every step moves exactly one cell away from its parent, BFS explores the grid in concentric rings — first everything one step from the start, then everything two steps away, and so on. This is why the animation looks like a ripple expanding outward from the start marker: it's a direct visual consequence of FIFO ordering, not a special effect. Critically, the first time BFS reaches the end cell is guaranteed to be via a shortest path, because no cell farther away can ever be dequeued before all closer cells have already been processed.

A*: why the heuristic reshapes the search

A* replaces the plain queue with a priority list sorted by f = g + h, where g is the confirmed number of steps from the start and h is Math.abs(r - end.r) + Math.abs(c - end.c) — the Manhattan distance to the goal, chosen because it's an admissible heuristic on a 4-directional grid (it never overestimates the true remaining distance, which is what guarantees A* still finds the optimal path). Sorting the open list by f before popping each iteration (open.sort((a,b) => a.f - b.f)) means cells that are both close to the start and pointing toward the goal get explored first. Run BFS and A* on the identical maze back to back and the difference is visible immediately: BFS's ripple fills a full circle around the start regardless of where the end is, while A*'s frontier visibly stretches and leans toward the end marker, exploring far fewer irrelevant cells in open areas.

Grid state, wall drawing, and drag handling

The grid is backed by a plain 2D array of 0s and 1s (grid[r][c]), completely separate from the DOM cells array (cells[r][c]) that holds the actual div references — a deliberate split so pathing logic never has to read CSS classes or query the DOM to know if a cell is a wall. Wall drawing uses a single mousedown/mouseover/mouseup trio on the grid container rather than a listener per cell: mousedown starts a drag mode ('start', 'end', or 'wall'), mouseover events during the drag call setWall, and mouseup on the document (not just the grid) ends the drag reliably even if the cursor leaves the grid bounds mid-drag. Both start and end markers are just coordinates that get repainted, protected from ever landing on top of each other or on a wall.

Path reconstruction via a cameFrom map

Both algorithms populate a shared cameFrom object that maps each discovered cell's key to the coordinates of the cell that discovered it — the standard technique for reconstructing a path after any graph search without storing full paths at every node. Once the end cell is reached, animatePath() walks backward from end through cameFrom links until it reaches start, unshifting each cell onto a path array, then animates that path forward in amber with its own separate, slightly slower setTimeout loop so the final route is legible even after a fast search.
